Material Synthesis Facility

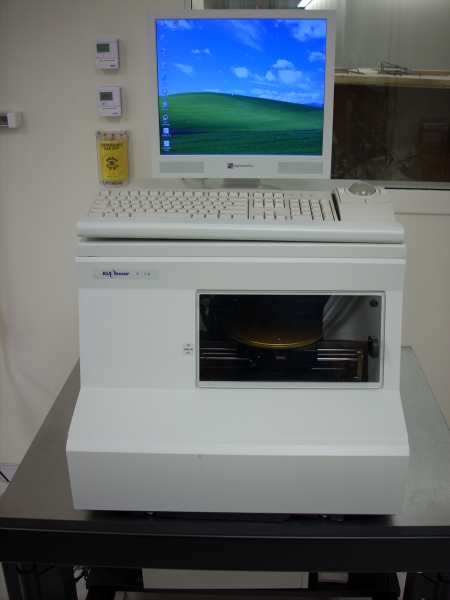

 KLA-Tencor P-16+ Contact Stylus Profiler
CNS ID: PL-4
Make: KLA-Tencor
Model: P-16+
Category: Chemical Nanotechnology
Name: KLA-Tencor P-16+ Contact Stylus Profiler
Location: LISE - G06


Click on a thumbnail to enlarge. For multiple images: after a picture has enlarged, you can move between photos by clicking on the right/left edges of the enlarged image.
More Info:
The KLA-Tencor P-16+ is a contact stylus-type surface profiler, which is capable of being utilized in a wide range of applications. It delivers automated step height, surface contour, waviness and roughness measurements with detailed 2D or 3D analysis of topography for a variety of surfaces and materials, including soft materials like polydimethylsiloxane (PDMS). It uses a diamond stylus for advanced profiling applications on a Windows XP operating system. It has a Microhead with an extended vertical range of 1 mm, stylus force as low as 0.5 mg, and extended scan length of 200mm. P-16+ offers top and side view optics, allowing the operator to automatically switch between a top-down view for fast stylus positioning and navigating over the sample, and an angled view for easy monitoring of the stylus as it scans over target features.
Comments:

Contact Info:
Hao-Yu (Greg) Lin
LISE G40
11 Oxford Street
Cambridge, MA 02138
617-384-5028
hlincns.fas.harvard.edu
Jason Tresback
LISE G46
11 Oxford Street
Cambridge, MA 02138
617-496-1783
jtresbackcns.fas.harvard.edu
